100X Remote Control Float Ball Valve |
|
 |
|
|

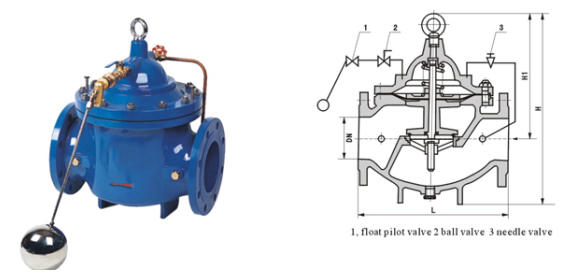

The main valve is controlled by a float ball valve which locates on the top of tank or reservoir. The valve maintains the maximum water level of tank or reservoir continuously. 100X diaphragm control ball valve is a multi-function hydaulic control valve, The water level can be controlled below a preset elevation,This valve can be widely used in influent pipes of the pools and water tower in hig-rise buildings,municipal domestic water systems,fire fighting facilites, factories and mines. When adding a solenoid valve, then comprises another type (i,e,106X), which provides double control to water level,normally used at high overflow prevention project.Pressure Rating: PN10. PN16. PN25/Class150SizeRange: DN20mm-DN800mm (3/4" - 32") | |
|
|
|
| |
Dimensions( mm)4. |
|
| |
|
DN |
L |
D |
D1 |
D2 |
Z-~d |
A1 |
A |
H1 |
H |
|
PN10 |
PN16 |
PN25 |
PN10 |
PN16 |
PN25 |
PN10 |
PN16 |
PN25 |
PN10 |
PN16 |
PN25 |
|
50 |
240 |
165 |
165 |
165 |
125 |
125 |
125 |
102 |
102 |
99 |
4-~18 |
4-~18 |
4-~18 |
140 |
335 |
210 |
95 |
|
65 |
250 |
185 |
185 |
185 |
145 |
145 |
145 |
122 |
122 |
118 |
4-~18 |
4-~18 |
8-~18 |
140 |
335 |
215 |
97 |
|
80 |
285 |
200 |
200 |
200 |
160 |
160 |
160 |
133 |
133 |
132 |
8-~18 |
8-~18 |
8-~18 |
145 |
345 |
245 |
106 |
|
100 |
360 |
220 |
220 |
235 |
180 |
180 |
190 |
158 |
158 |
156 |
8-~18 |
8-~18 |
8-~18 |
155 |
365 |
305 |
152 |
|
125 |
400 |
250 |
250 |
270 |
210 |
210 |
220 |
184 |
184 |
184 |
8-~18 |
8-~18 |
8-~18 |
165 |
385 |
365 |
152 |
|
150 |
455 |
285 |
285 |
300 |
240 |
240 |
250 |
212 |
212 |
211 |
8-~18 |
8-~18 |
8-~18 |
180 |
410 |
415 |
160 |
|
200 |
585 |
340 |
340 |
360 |
295 |
295 |
310 |
268 |
268 |
274 |
8-~18 |
12-~18 |
12-~18 |
205 |
465 |
510 |
220 |
|
250 |
790 |
395 |
405 |
425 |
350 |
350 |
370 |
320 |
320 |
330 |
12-~18 |
12-~18 |
12-~18 |
225 |
505 |
560 |
250 |
|
300 |
900 |
445 |
460 |
485 |
400 |
400 |
430 |
370 |
370 |
389 |
12-~18 |
12-~18 |
16-~18 |
245 |
545 |
658 |
372 |
|
400 |
960 |
565 |
580 |
620 |
515 |
525 |
550 |
482 |
482 |
503 |
16-~18 |
16-~18 |
16-~18 |
285 |
625 |
735 |
415 | | |
|
|
| |
Main Technical Features |
|
| |
|
PN |
1.0MPa |
1.6MPa |
2.5MPa |
|
Shell Test |
1.5MPa |
2.4MPa |
3.75MPa |
|
Seal Test |
1.1MPa |
1.76MPa |
2.75MPa |
|
Suitable Temperature |
¡¶80oC |
|
Suitable Medium |
Water | | | |
|
|
|
|
|
